01005" Size 12 Nozzle Heads SMT Pick And Place Machine For Electronics PCB

Brand Name : FUJI NXT

Model Number : YSL-M3II

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Business negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50 sets per year

Delivery Time : 15 days to 20 days

Packaging Details : Plywood package

Applicable Components : 0402 (01005") to 7.5 x 7.5

Application range : SMD,Chips,etc.

Capability : 25,000CPH

Contact Now

01005" Size 12 Nozzle head FUJI NXT-M3 II Pick and Place Machine for Electronics PCB

Below is the operation video of Pick and Place Machine on YuTube

https://youtu.be/IZX3HnE9fUg

Machine features:

Place of Origin:Japan

Brand Name:YUSH

Model Number:YSL-M3II

PCB size:48 x 48 mm to 250 x 510 mm (double conveyor)*

Part types:Up to 20 types of parts (calculated using 8 mm tape)

Throughput(cph):25,000 Parts presence function ON: 24,000

Part size (mm):0402 (01005") to 7.5 x 7.5

Placing accuracy:+/-0.038 (+/-0.050) mm (3) cpk≥1.00*

Nozzle quantity:12

Machine dimensions:L: 1295 mm (M3 III x 4) / 645 mm (M3 III x 2) W: 1900.2 mm, H: 1476 mm

Part Height:Up to 3.0 mm

Power supply:3 phase 200-230V ±10%(50/60HZ)

Weight:415kg(double conveyor specification)

Product parameter:

Model:YSL-M3II

PCB size:Min.48*48mm;Max.510*534mm(Double track)

Placement speed:H12HS:22,500;H08:10,500;H04:6,500;H01:4,200

Patch range:

H12S:0402~7.5x7.5mm Height:MAX:3.0mm

H08: 0402~12x12mm Height:MAX:6.5mm

H04: 1608~38x38mm Height:MAX:13mm

H01/H02/OF:1608~74x74mm(32X180mm) Height:MAX:25.4mm

G04:0402~15.0mmx15.0mm Height:MAX 6.5mm

Rack support:MAX:20 kinds / modules (8mm tape conversion)

Placement Accuracy:H12S/H08/H04:0.05mm(3sigma) cpk≥1.00

Power Supply:3P 200V 10KVA

Air flow:0.5MPa (5kgf/cm2),10NI/min.

Dimension:2M II base:L740*W1934

4M II base:L1390*W1934

H:1474mm(M3 II) 1476mm(M6 II/M6 IISP)

Weight:1350kg

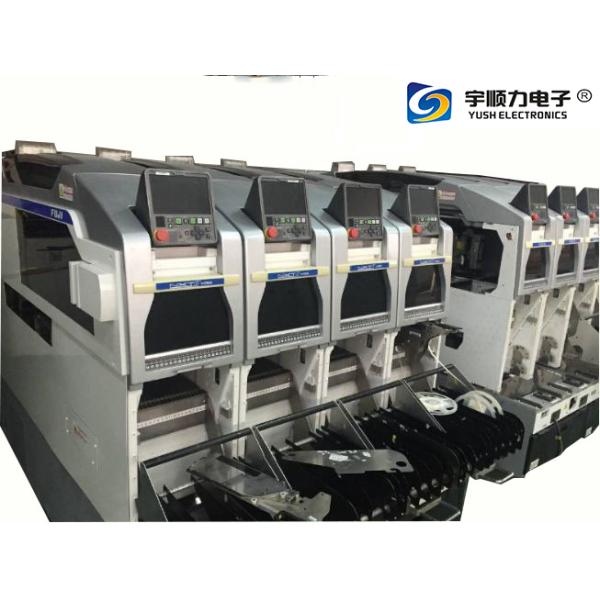

Demo for sale machine:

01005" Size 12 Nozzle Heads SMT Pick And Place Machine For Electronics PCB

Packing method:
1)Standard box package for light and small item;
2)Strong wood package for heavy and large equipment;

Shipping way:
1)By air ,for sample and small package ,wordwide express like DHL,UPS,FedFX,EMS....
2)By sea, for large package and quantity;
3)By car or other ways as customer requested;

01005" Size 12 Nozzle Heads SMT Pick And Place Machine For Electronics PCB
