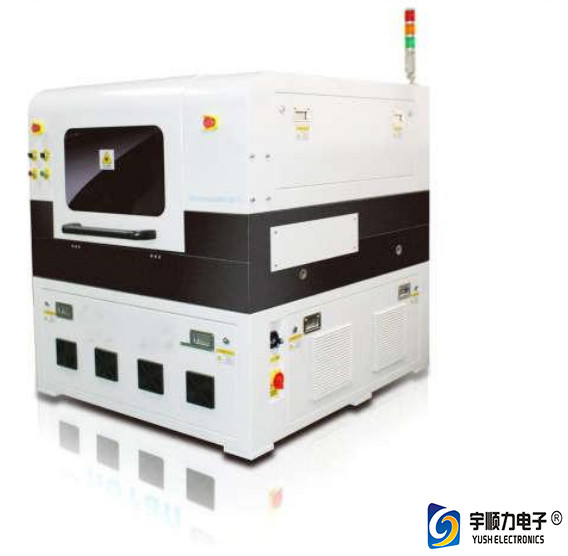

Single Table 15W 355nm UV Laser Cutting Machine

YUSH Electronic Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Single Table 15W 355nm UV Laser Cutting Machine

Brand Name : YUSHUNLI

Model Number : YSV-7A

Certification : CE

Place of Origin : China Dongguan

MOQ : 1set

Price : USD1000~80000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200Sets/Month

Delivery Time : 5-7work days

Packaging Details : plywooden case

Laser power : 15W

Laser wavelength : 355nm

Equipment weight : 1500KG

Power supply : AC220V / 3.5KW

Repeatability : ±2 μm

positioning accuracy : ±2 μm

Largest format : 460mm*460mm

Equipment size : 1350mm(L)×1150mm(W)×1550mm(H)

Contact Now

Single Table FPC/PCB 15W All Solid-State UV Laser Cutting Machine
Product Brief Description
Can be integrated with the production line: gantry structure and flying light path design,easy to connect to the production line, can be equipped with special loading and unloading and IN-LINE systems according to production requirements, realize full automation of production, and greatly improve production efficiency. It is designed for FPC and PCB processing Tailor-made equipment.
Efficient and fast FPC/PCB exterior cutting, drilling and cover film windowing,fingerprint recognition chip cutting, TF memory card splitting, mobile phone camera module cutting and other applications.
Divided, layered, designated block or selected area is cut and formed directly, the cutting edge is neat and round, smooth, without burrs, and without glue overflow.The products can be arranged in a matrix for automatic positioning and cutting,which is especially suitable for the cutting of fine, difficult, and complex patterns.
High-performance laser: Adopting the solid-state UV laser of the international first-line brand, it has the advantages of good beam quality, small focus spot, uniform power distribution, small thermal effect, small slit width, high cutting quality, etc. It is the
guarantee of perfect cutting quality.
Fast and high precision: The combination of a high-precision, low-drift galvanometer and a fast iron-core linear motor system platform enables fast cutting while maintaining micron-level high precision.
Fully automatic positioning: The high-precision CCD is used for automaticpositioning and focusing, so that the positioning is fast, accurate and high-precision, without manual intervention, simple operation, realizes the same type of one-key mode, and greatly improves production efficiency.
Exhaust gas treatment system: The suction system can eliminate all cutting exhaust gas, avoiding the harm to the operator and the pollution to the environment.
High degree of automation: the scanner auto-calibration, auto-focusing, the whole process of automation, the use of laser displacement sensor automatically adjusts the height of the focus to the table, to achieve rapid alignment, saving time and worry.
Easy to learn software: self-developed Windows-based control software, easy-to-use Chinese interface, friendly and beautiful, powerful and diverse, easy to operate.
ItemDevice ModelYSV-7A
Laser BrandOptowave/United States
Laser Power15W
Laser PropertiesAll solid-state UV laser
Laser Wavelength355nm
GalvanometerSCANLAB/CTI Germany
Field LensSILL/JENOPTIK Germany
GuideHIWIN/Taiwan
ReflectorUnited States(Optowave)
Grating RulerRenishaw/United States
CCDMVC/Italy
Accessories Configuration

Driver

Yaskawa / Japan

ReflectorOptowave/United States
Linear motorigus/Shanghai ECHU
355 Beam ExpanderOptowave/United States
Linear MotorHIWIN/Taiwan
355 Beam ExpanderUnited States(Optowave)
Dust ProcessorHOYAN
Equipment BodyMarble/Qingdao
Motion control cardTrinidad Cloud/Shenzhen, China
Cutting SoftwareHoyan-ScanCut
Spot Diameter20± 5um
Maximum Scanning Range of Galvanometer50mm*50mm









Performance configuration

Cutting Substrate Thickness

Less than 1.2mm (Depending on the

cutting quality of different

materials)

Repeatability±2 μm
Positioning Accuracy±2 μm

Machining Accuracy

±20 μm

Equipment Size1350mm(L)×1150mm(W)×1550mm(H)
Support document formatGerber/DXF
Equipment Weight1500KG
Largest format
460*460MM








Environmental Requirements

Power SupplyAC220V / 3.5KW
Grid Demand(Two-phase) single-phase AC220V
Temperature20±2 ℃
Humidity

50-60% no condensation

Air pressure requirement0.5~0.6Mpa(No need for stand-alone)
Shock≤5um

Other
Environmental requirements:20±2 ℃ /50-60% No condensation
Special function:Laser QR code (metal/white oil surface);There is reserved space to change the automation equipment later
